Integrated FORJ With Electrical Slip Ring With Receeptacle High Protection IP65
The Fiber optic rotary joint (FORJ) is the optical equivalent of the electrical slip ring. It allows uninterrupted transmission of an optical signal while rotating along the fiber axis. The FORJ is widely used in missile guidance systems, robotic systems, remotely operated vehicles (ROVs),oil drilling systems, sensing systems, medical devices (OCTs), broadcasting and many other field applications where a twist-free fiber cable is essential. We engineer what you need. Our solutions are customized to meet the exact circuits, ratings, and design parameters required for your application.
Typical uses
◆ Antenna system
◆ Simulator tester
◆ Robot arm
◆ Marine Winch
Feature
◆This model is capable to accommodate 2-7 channels under the same diameter body.
◆ Transfers power, as well as analog and digital signals
◆ Compatible with data bus protocols
◆ Fiber brush technology provides long life and maintenance free operation
◆ Compact packaging
Specification
| FCN0203-44R Specification | Picture |
| Fiber type | SM/MM |  |
| Fiber channel | 2-3 |
| Connector type | FC/PC/LC/ST |
| Wave length range | 1270-1610nm for SM;850 and 1310nm for MM |
| Insertion loss | < 5.5dB |
| Rotation speed,max | 300rpm |
| Operation temperature | -20℃～+65℃ |
| Estimated life cycle | 100-200 million revolutions |
| IP grade | IP65 |
| Housing material | Stainless steel |
| Package style | Receptacles(FC or ST;up to 3 channels) |

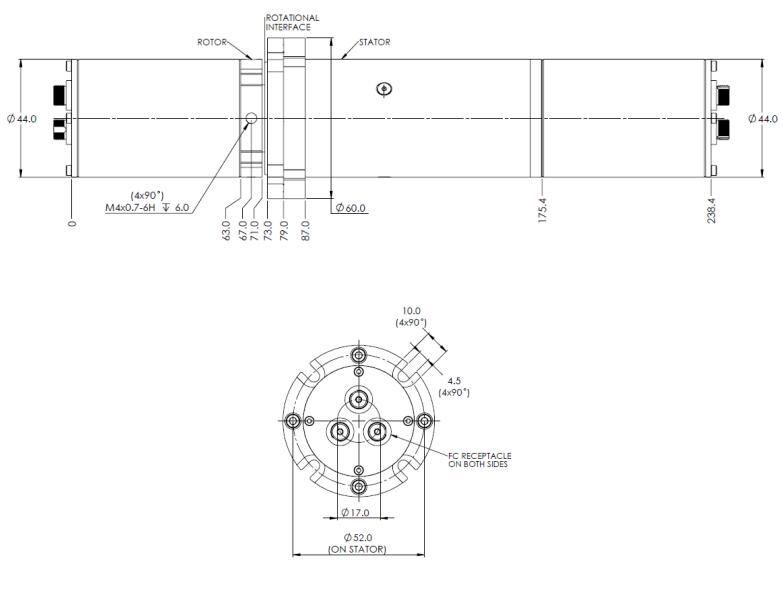

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
