The Smallest Size Light Weight Fiber Optical Slip Ring With Single Channel
Fiber Optical slip ring also called Fiber Optic Rotary Joint.
It used to any devices to transmit elctricity and fiber signal when 360° rotating ,such as HD video transmission system, microwave communication, medical equipment,Naval vessel system, sensor signal measurement, radar and video monitoring system etc. Specially suitable for some applications which requires to keep continous or intermittent rotating and transmit mass data from static side to rotation side,
which can improve mechanical performance, simplify system operation and avoiding damages to fiber when rotating. Can be combined with the traditional electric slip ring to transmit power and high-speed data.
Main applications
◆ Rotary table
◆ Antenna system
◆ Testing machine
◆ Packing machine
Features
◆ The smallest size worldwide
◆ Connectors are optional
◆ Non-contact technology provides long life and maintenance free operation
Specification
| Parameter | Value |
| Channel number | 1 |
| Fiber type | SM/MM |
| Wave length | 650-1650nm |
| Insertion loss | ≤1.5dB |
| Insertion loss ripple | ≤0.7dB |
| Rotation speed max. | 2000rpm |
| Estimated life cycle | 50 million revolutions |
| Rotation torque | ≤1N.m |
| IP grade | IP65 |
| Operation temperature | -40℃～+70℃ |
| Operation humidity | ≥95% |
| Fiber | Φ3.0 single core fiber |
| Connector type | FC/PC/SMA |
| Housing material | Stainless steel |

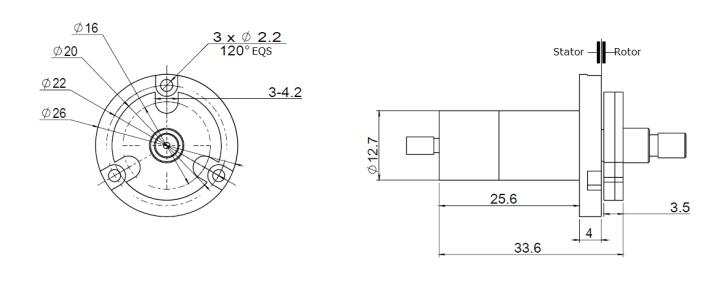

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
